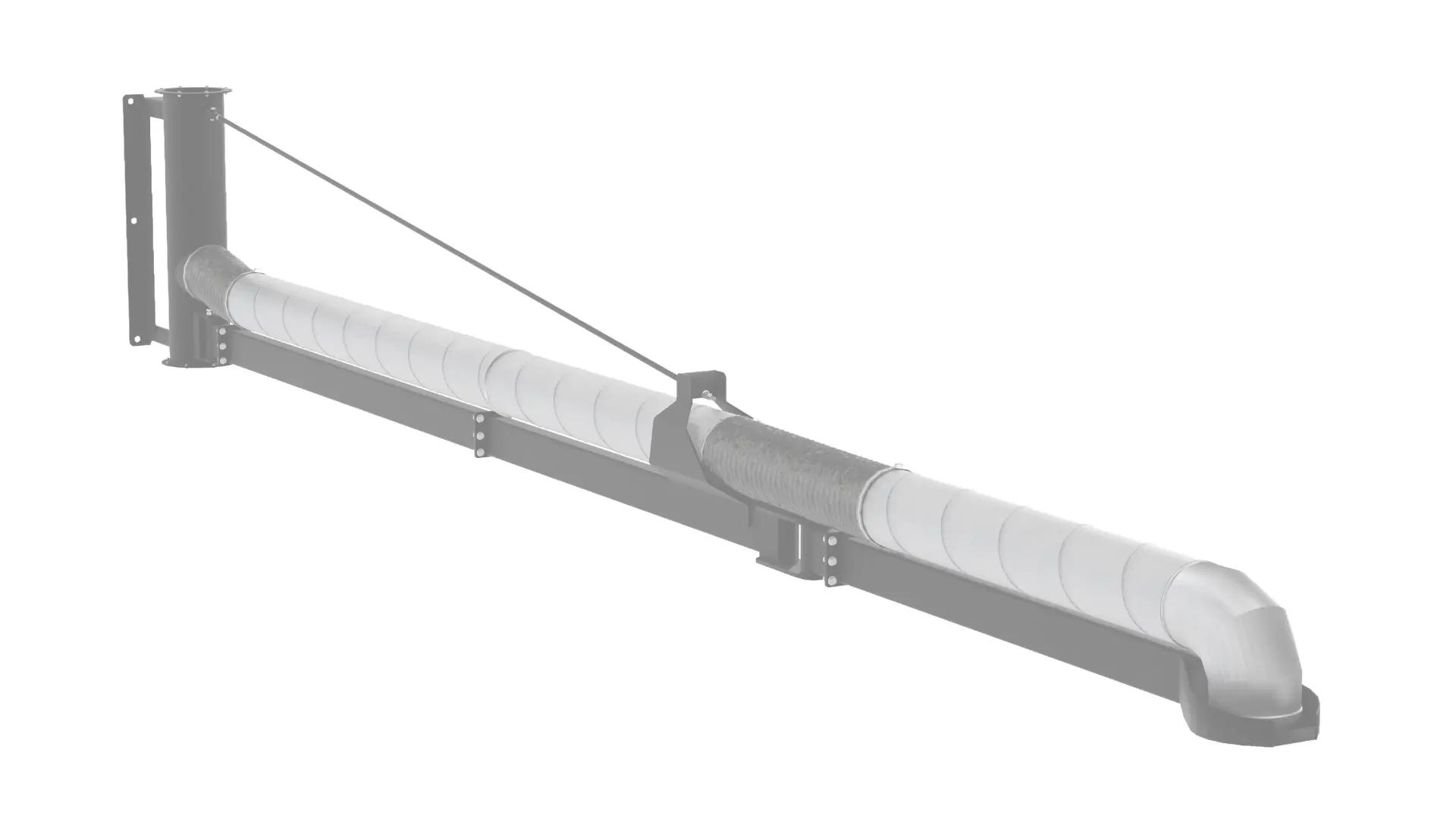

More workspace.

Extraction Booms

Complete positioning freedom.

Menegon extraction booms extend the reach of extraction arms, enabling effective contaminant capture across large workstations. Single- and dual-pivot designs allow the extraction point to be positioned exactly where it is needed - without expanding the ductwork system.

Placeholder text goes here

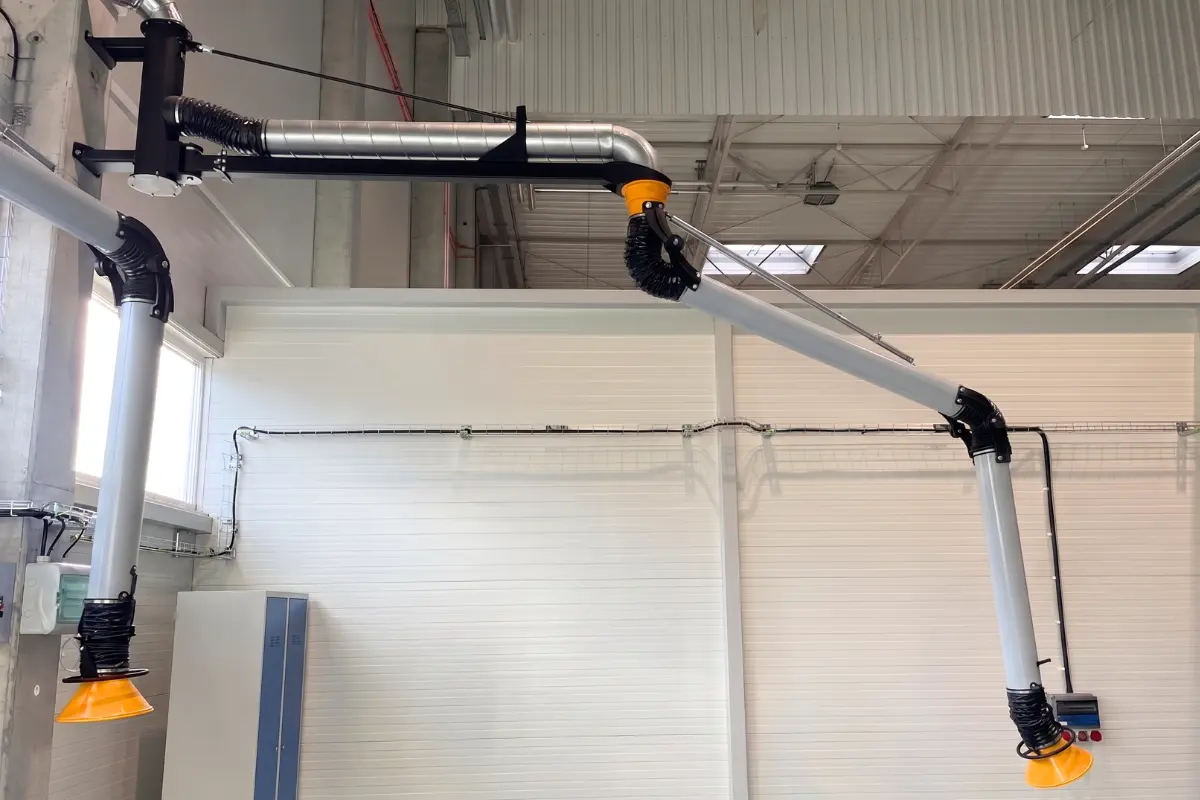

Extended Working Area

Increase extraction coverage from a single connection point.

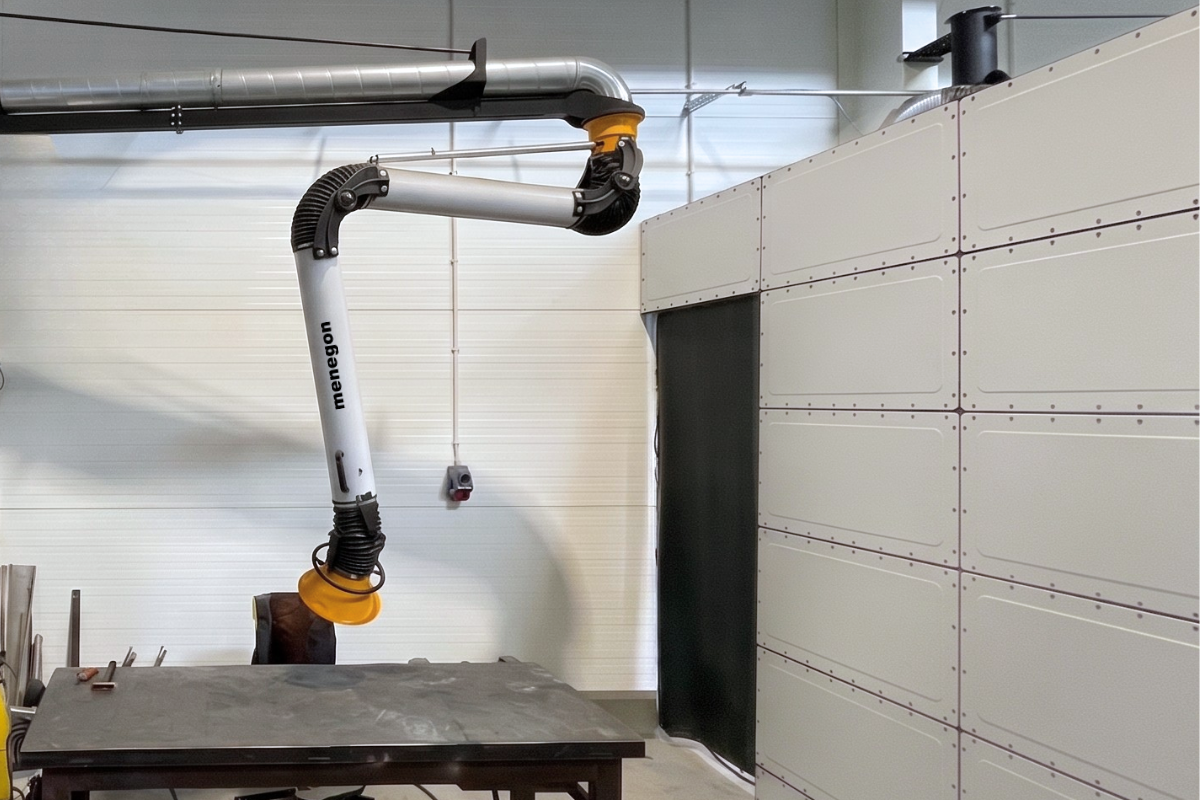

Flexible Positioning

One or two pivot points allow easy positioning of the extraction arm throughout the entire work area.

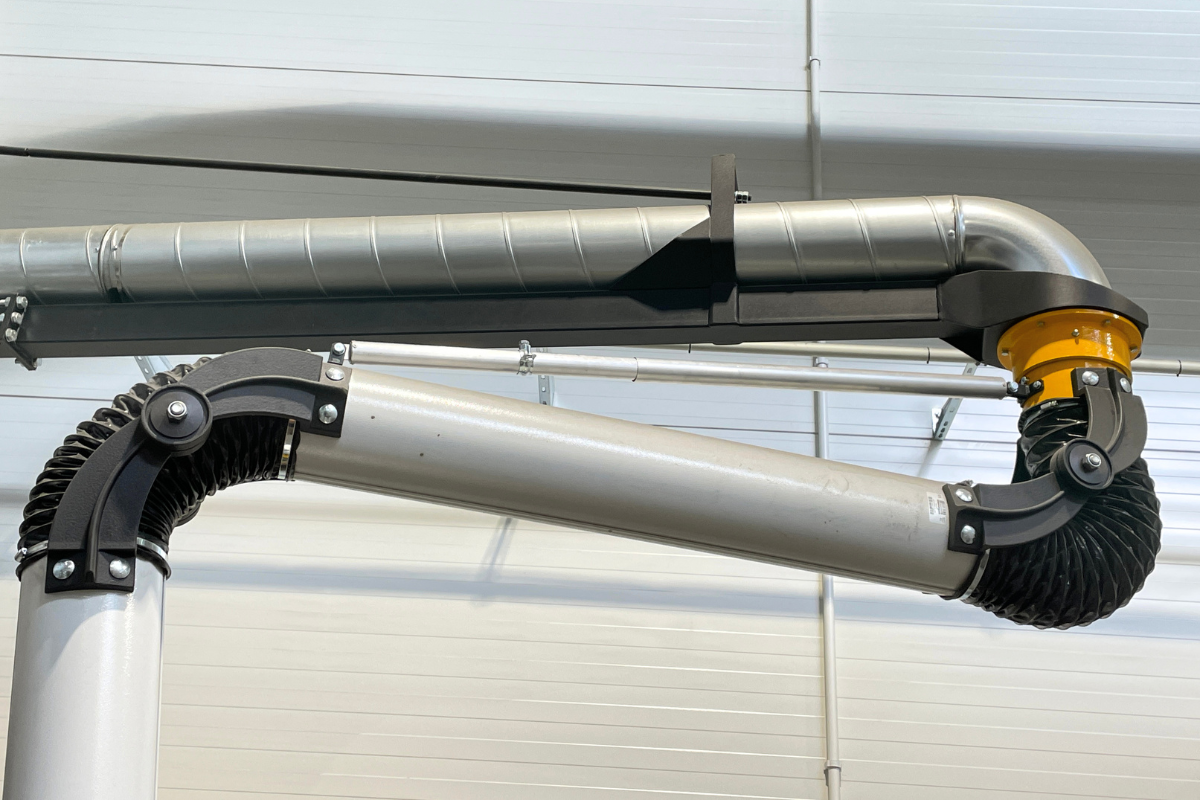

Counterbalance System

An adjustable counterbalance rod improves balance and supports smooth, effortless movement.

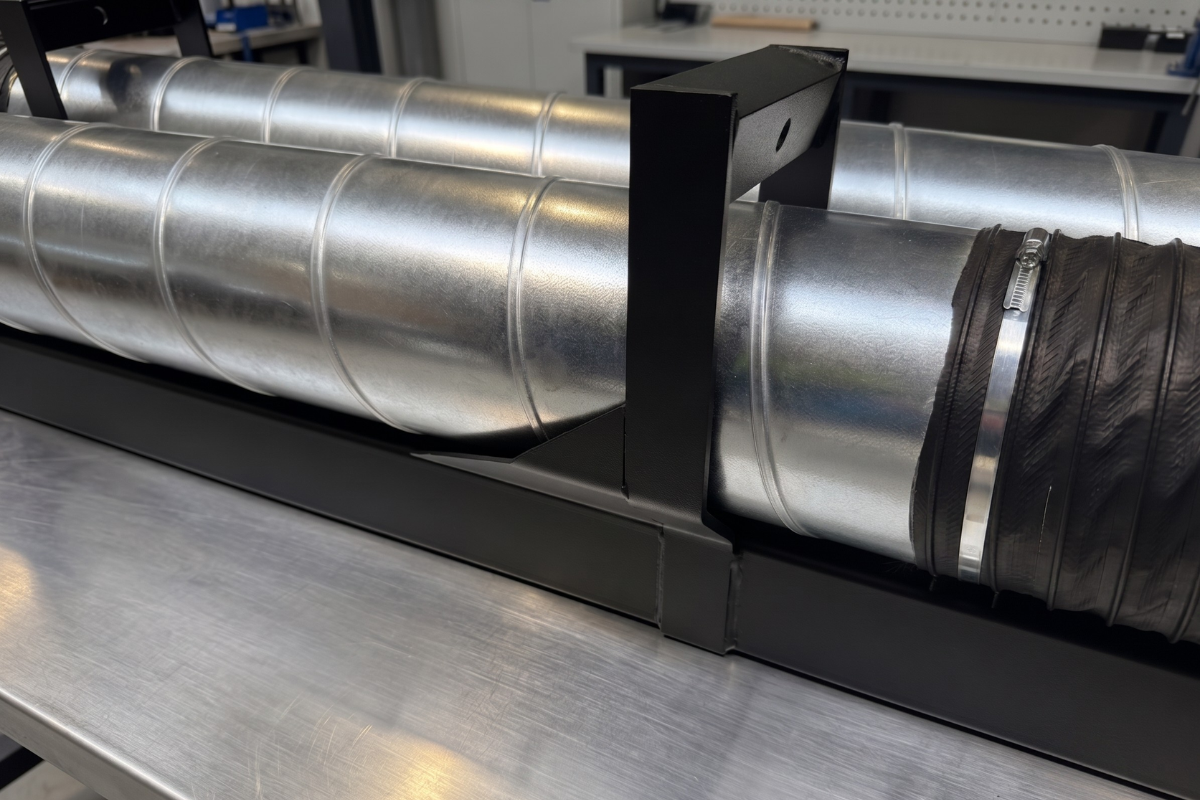

Industrial Durability

Welded steel construction designed for years of reliable operation in demanding industrial environments.

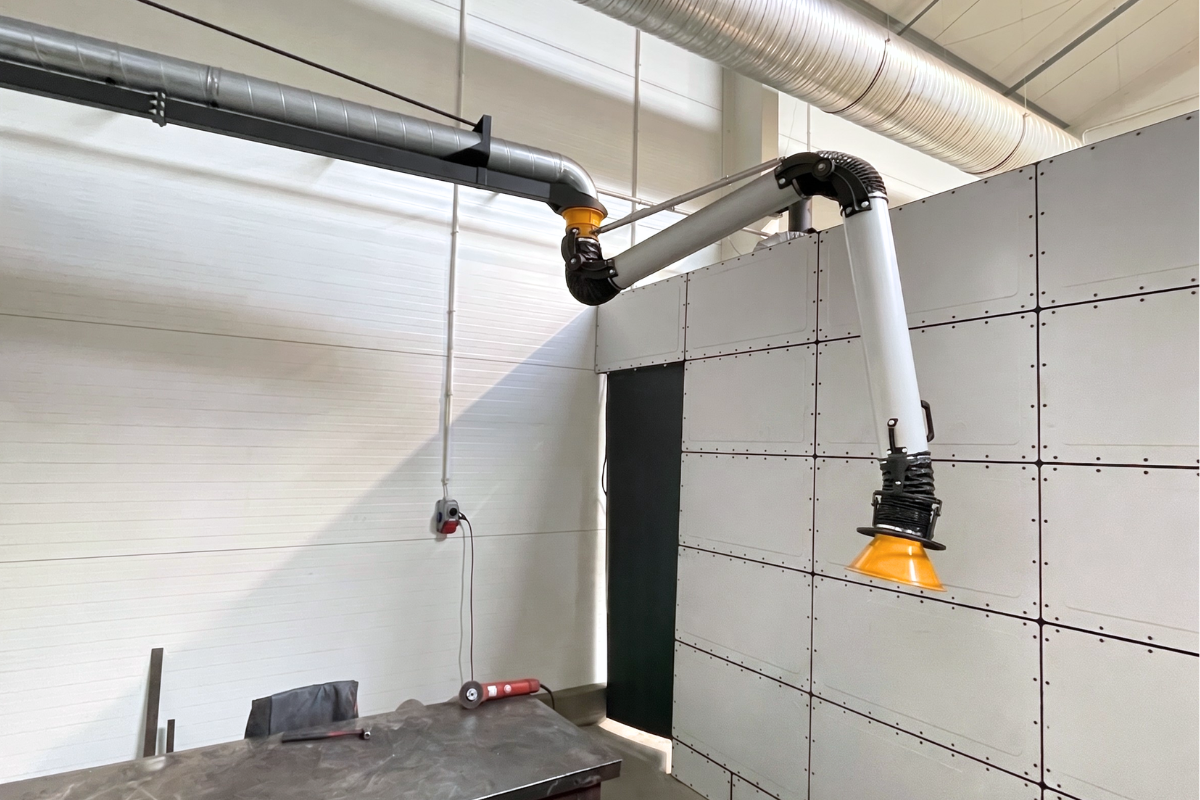

Unobstructed Airflow

The extraction path remains free from internal support mechanisms and obstructions, helping minimize pressure losses, reduce operating noise and maintain efficient contaminant transport.

Choose the extraction boom under your needs

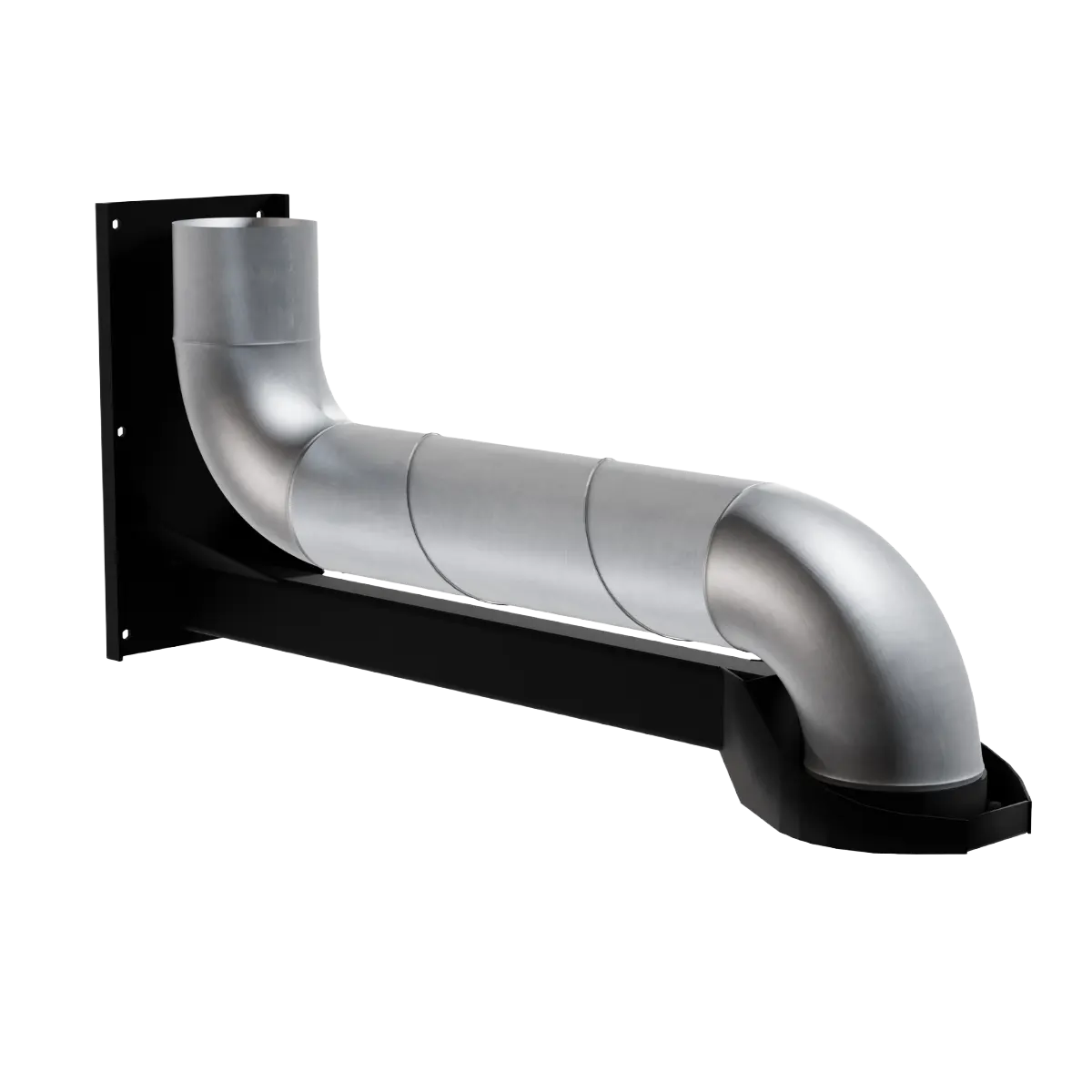

W0-160
Fixed booms
Order

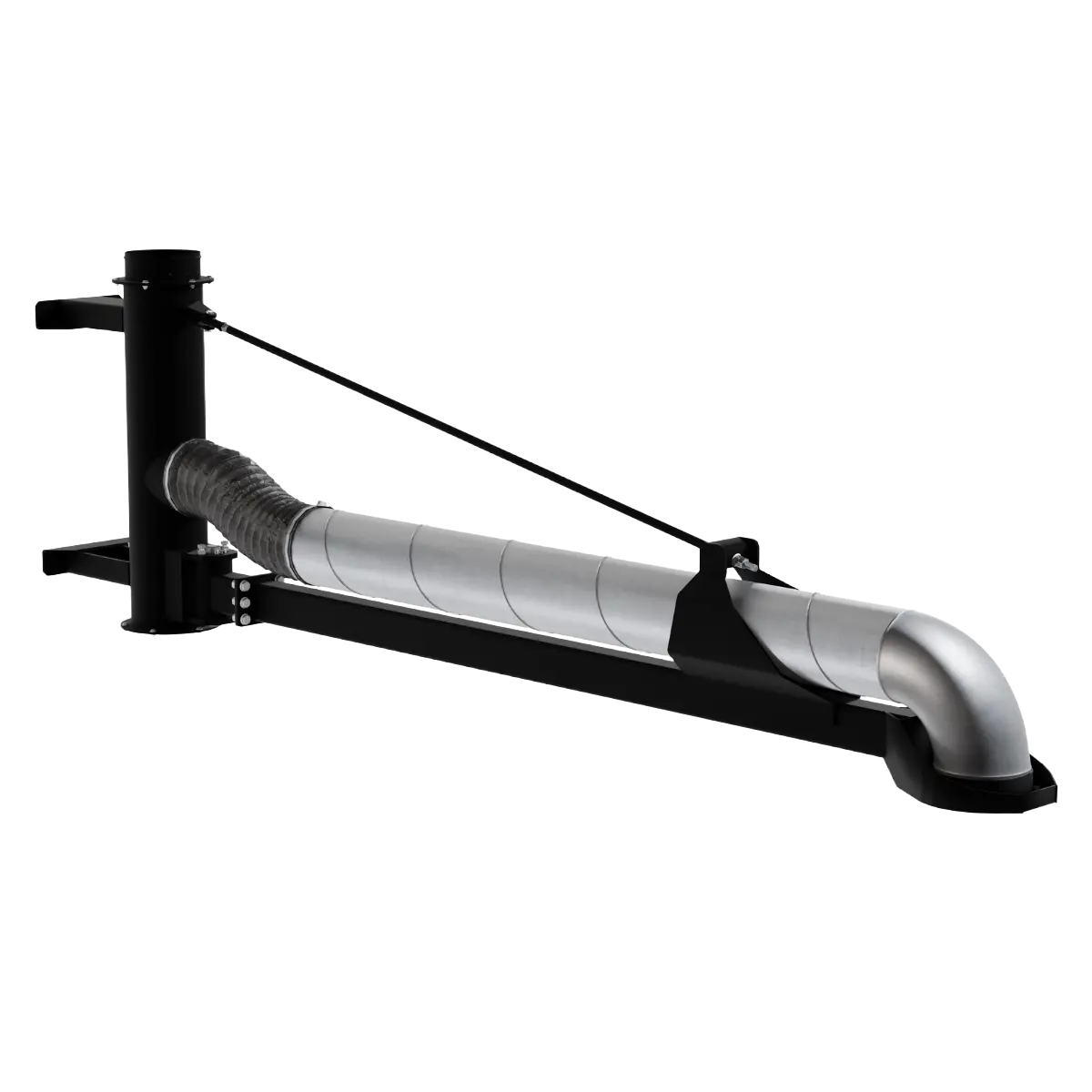

WM-160
Single & dual pivot
Order

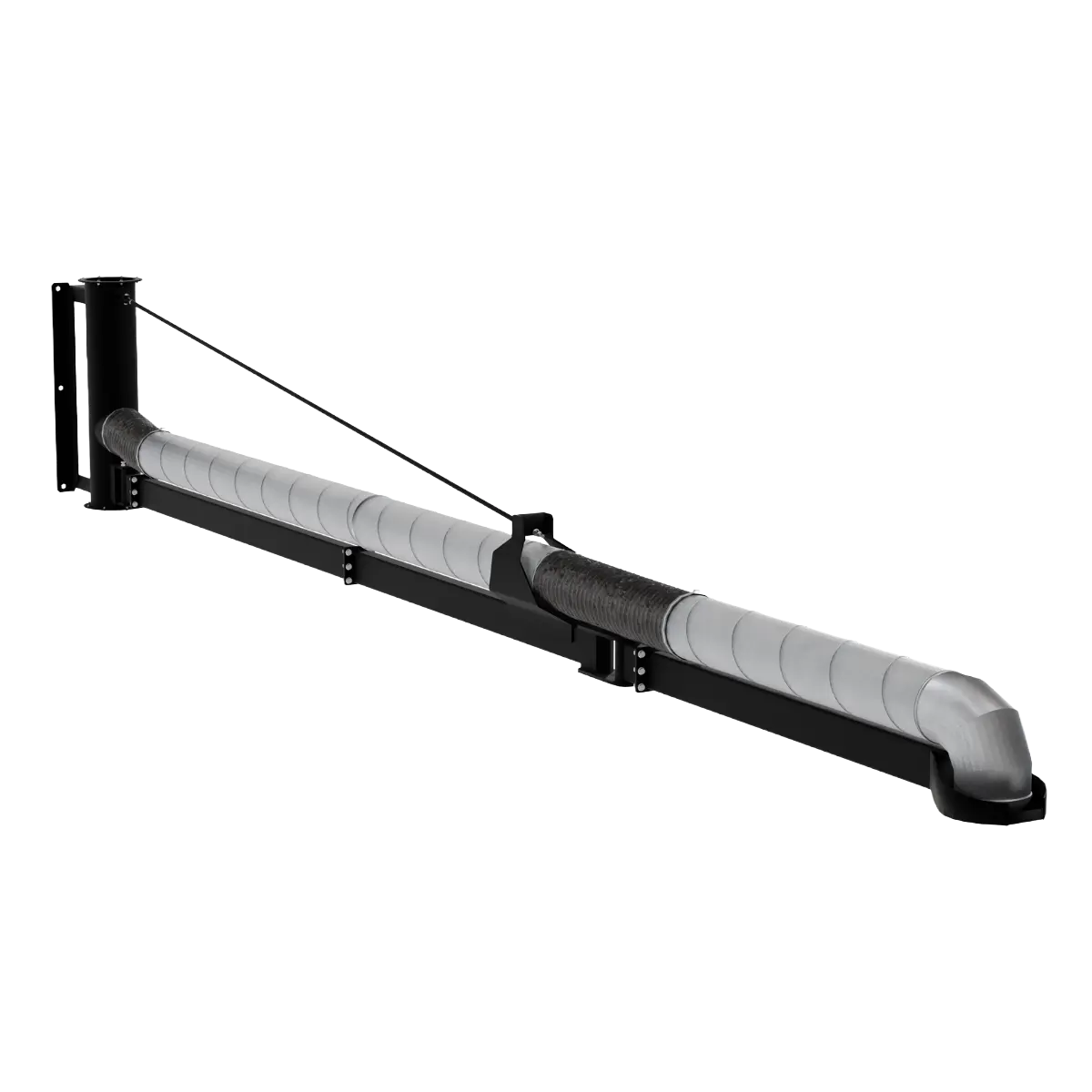

WM-200
Single & dual pivot
Order

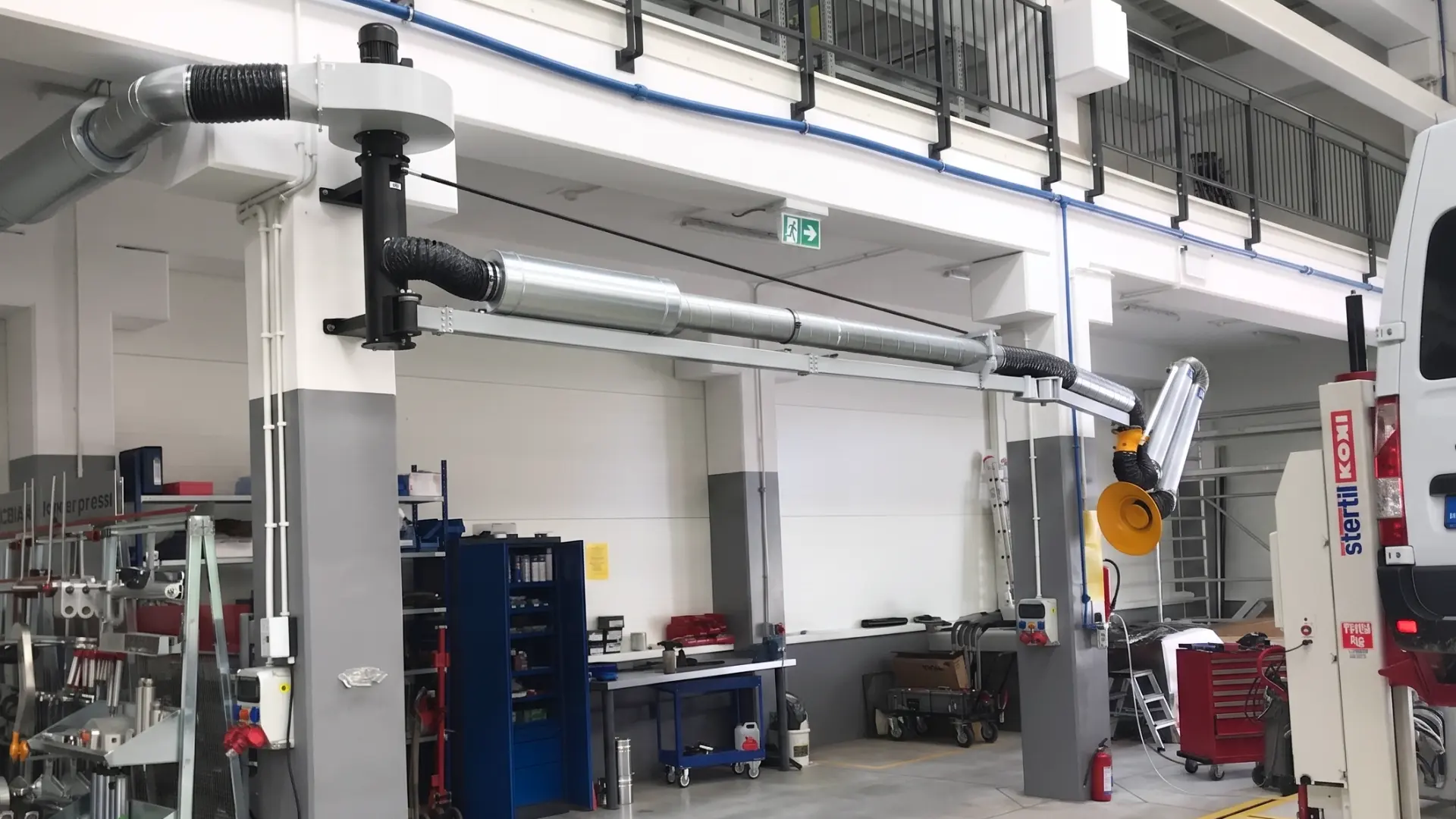

Extraction Booms features

Lower pressure losses - Lower noise. Better extraction performance.

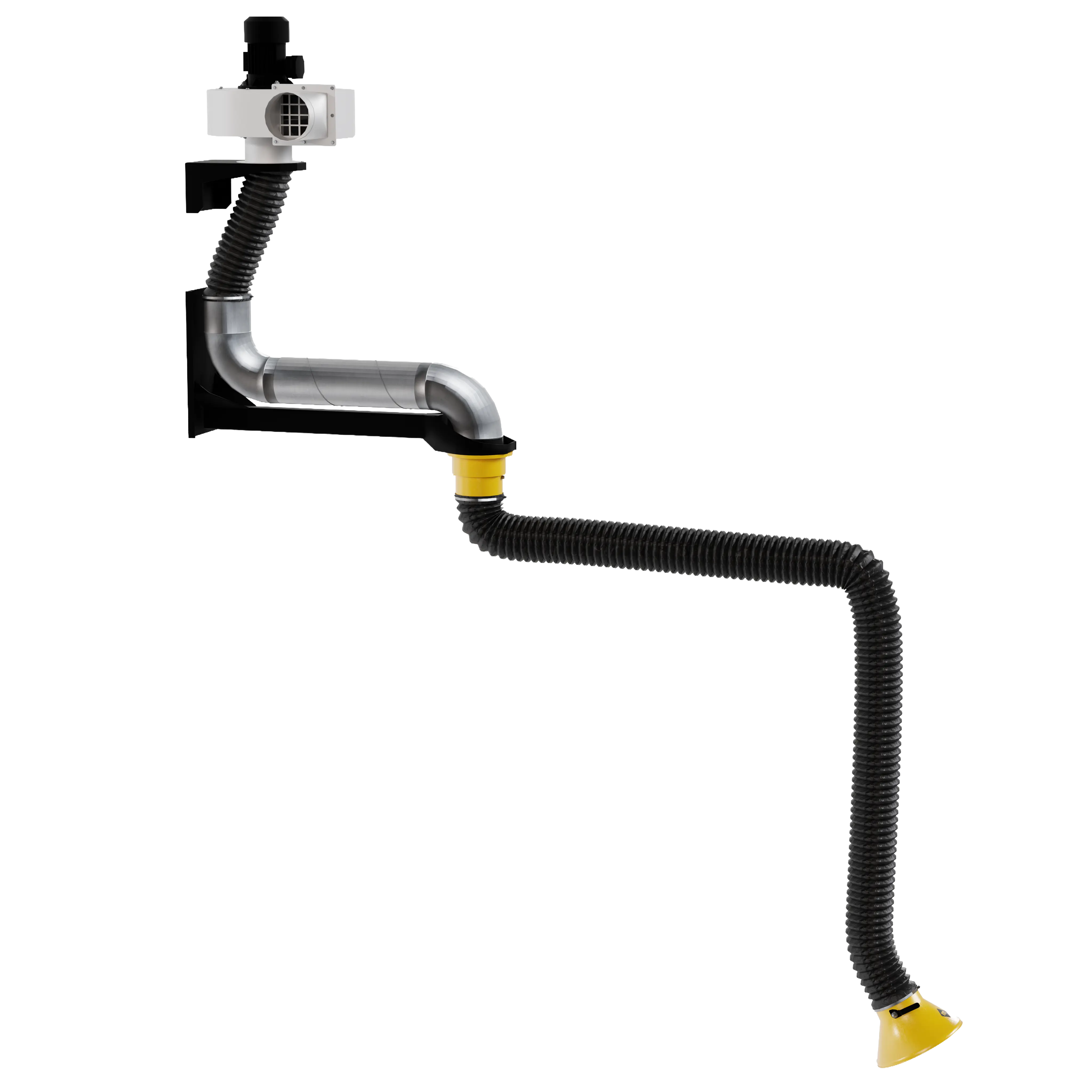

Maximum Positioning Freedom

Combined with an extraction arm, Menegon booms create a multi-pivot positioning system that significantly expands the working area and increases flexibility.

Each additional pivot point improves maneuverability, making it easier to reach the source of emissions regardless of its location. This allows the extraction point to be positioned quickly and precisely while maintaining high capture efficiency.

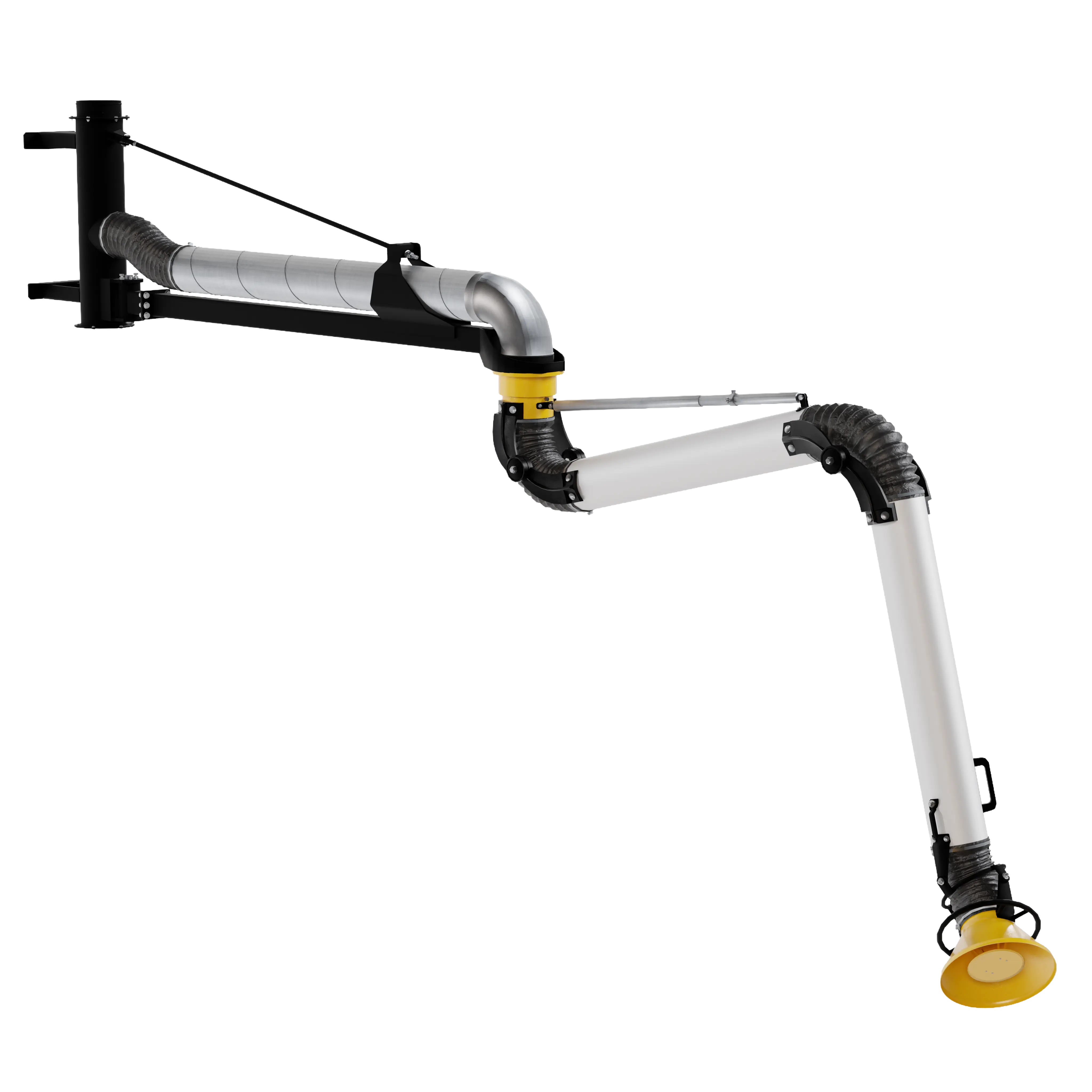

Designed for Industrial Use

Menegon extraction booms feature a rigid welded steel structure with ducting routed along the support beam. Flexible connections at the pivot points allow unrestricted movement without compromising airflow performance.

The pivot module integrates both the rotation axis and the duct connection. The counterbalance system assists beam leveling, reduces hinge loading, and helps maintain smooth, precise operation throughout the product's service life.
